|Kits||Weight||Max Tent Length||Aluminum||Steel|

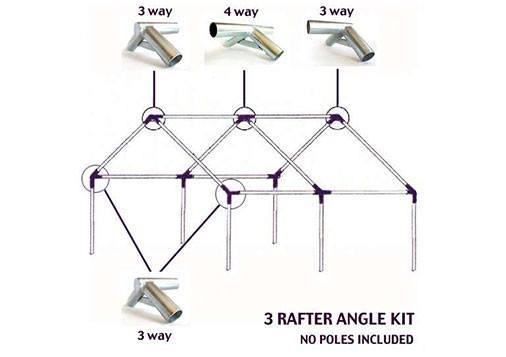

|3 Rafters/9 Angles||8 lbs||12'||$225||$220|

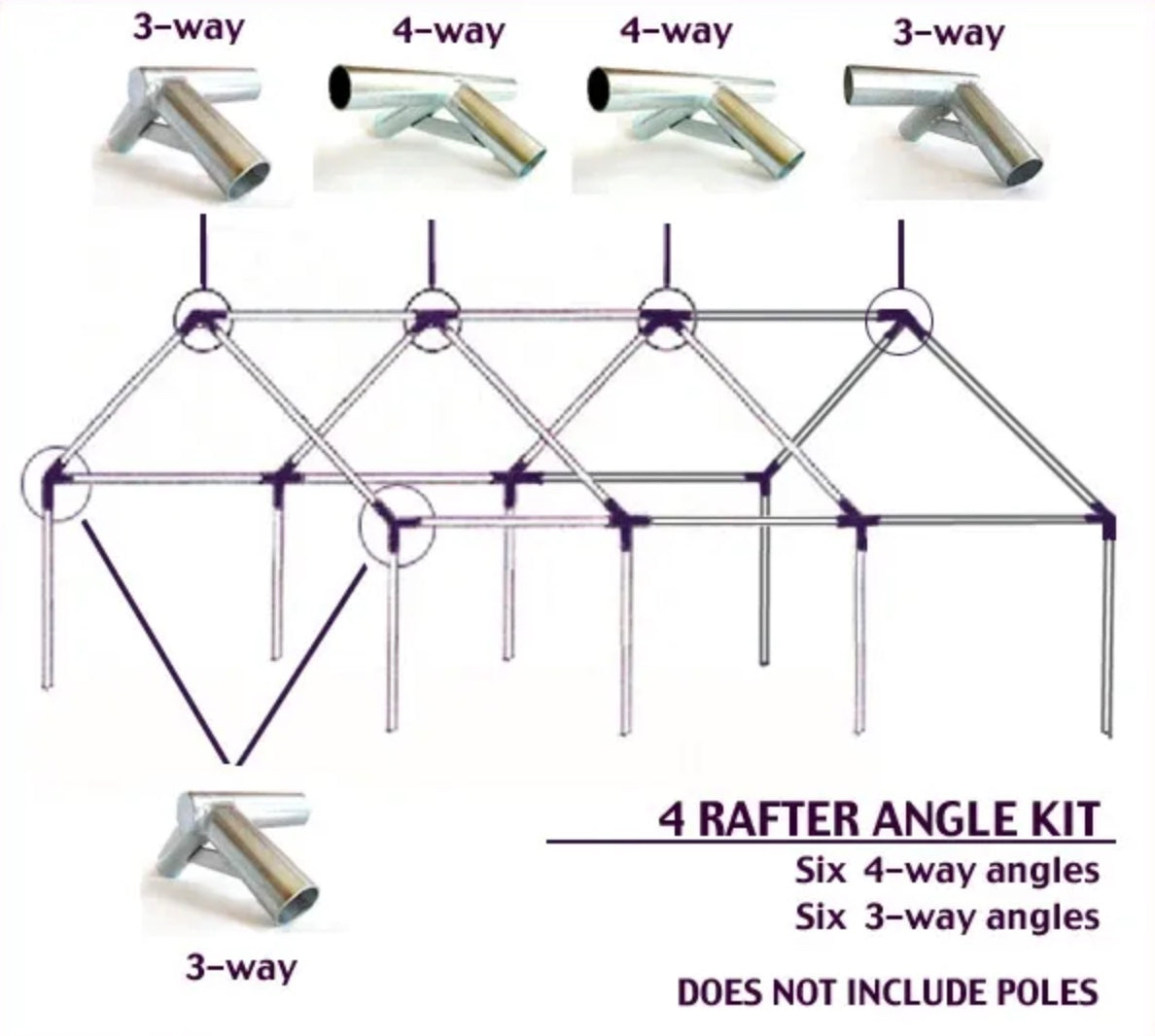

|4 Rafters/12 Angles||11 lbs||18'||$300||$280|

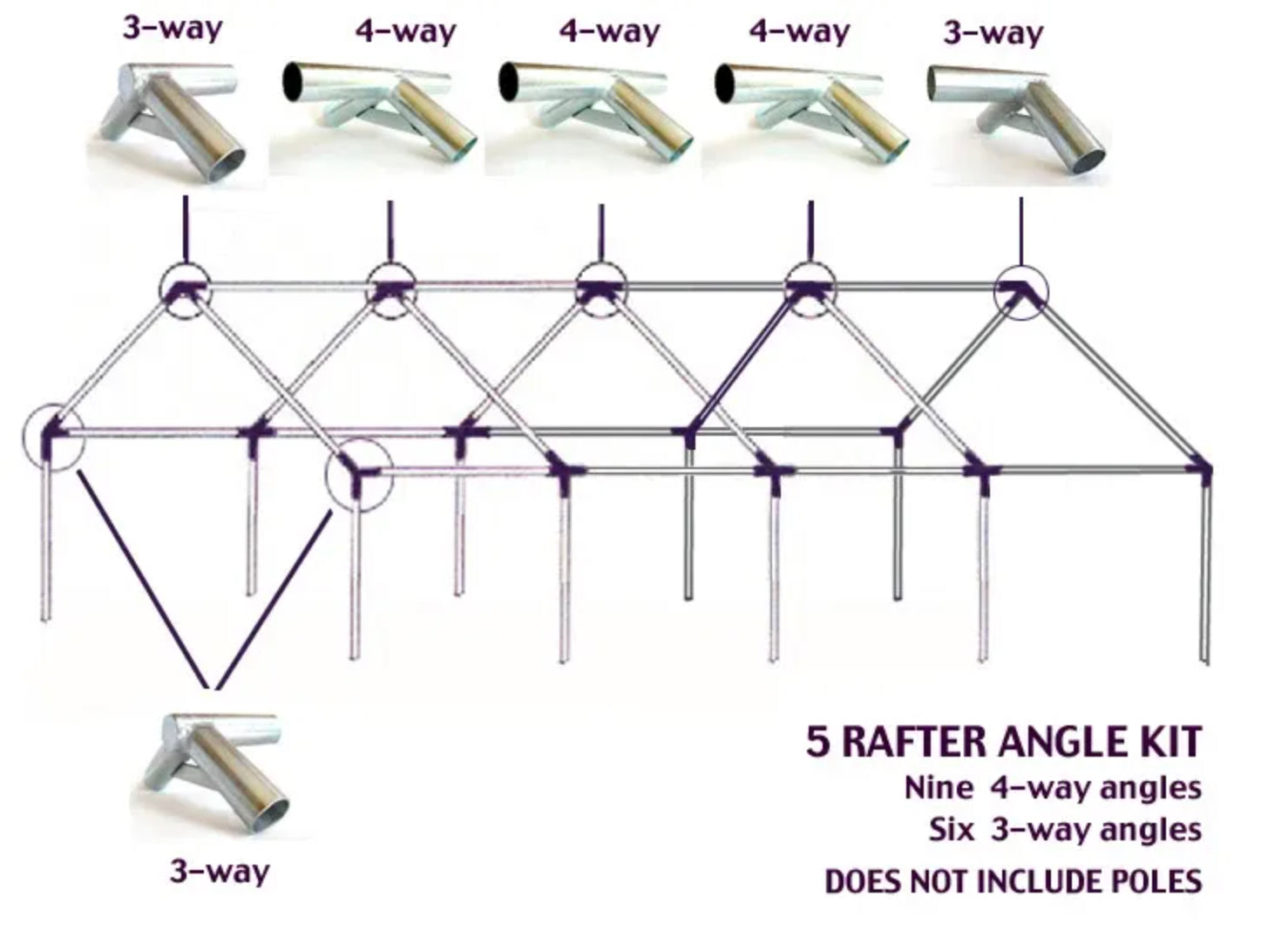

|5 Rafters/15 Angles||14 lbs||24'||$375||$350|
|6 Rafters/18 Angles||17 lbs||30'||$450||$420|
|Porch Kit- 2 Rafters/6 Angles||6 lbs||6'||$160||$150|
|Porch Kit- 3 Rafters/9 Angles||1 lbs||$225||$220|
Fixed steel angles are much less expensive than adjustable angles.
Click how to measure your tent for measuring instructions to order fixed angle kits. Fixed Angle kits are much less expensive.
Call or email your measurements and we can determine what fixed angles you need.
Normally, whatever degree of angle you require, we can ship in 1-3 days.
Click also Angle Kit Instructions.Aluminum Adjustable Angles
Ship date is 1 to 2 business days after order is received.
Adjustable aluminum angles come with two adjustments to fit different sizes of Montana Outfitter or Blend tents.
If your tent has a different angle requirement you can drill a hole in the angle adjustment and insert locking pin.
Aluminum angles only have a 1" overlap with conduit on all horizontal frame poles and a 3" overlap with rafters. The 1" overlap on horizontal frame sections makes setting up the tent difficult. If you need adjustable angles, I recommend the steel adjustable angle.

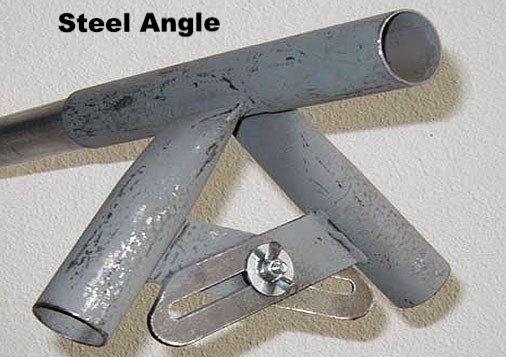

Adjustable steel angles with wing nut
Adjust angle and tighten wing nut to fit any tent.
Steel angles have a 3" overlap on horizontals and rafters.
Adjustable steel angles normally ship within 1 week.
95% of my customers buy an angle kit and make their own frame.
Click to view angle kit Instructions
