Tundra Takedown Stove - Portable Wood Stove - Free Shipping

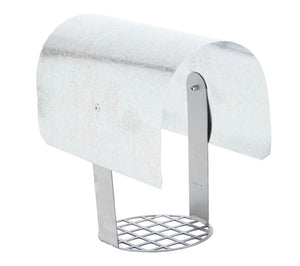

• Standard Package: Stove, Pipe, Damper, Rain Cap/Spark Arrestor.

• Deluxe Package: Stove, Pipe, Damper, Rain Cap / Spark Arrestor, Side Shelf, and Water Tank.

• Tundra Stove normally ships 1 - 2 days after ordering.
• Collapsible.

•  Limited lifetime guarantee on manufacturer defects.
• Tundra stove is hand made from 18 gauge cold rolled steel.
• Powder coated for a durable and lasting finish.
• All components of Tundra are CNC cut.
• Carrying case.
• Kni-Co Tundra nesting stove pipe. Larger piece fits into next smaller piece.
• Opening on top of stove is 5 inch.
• A standard 4 inch oval stove jack will accommodate Kni-Co 5 inch to 4 inch Nesting Pipe.
• Legs fold.
• Tent Heating Capability: Up to 16x20 Tent.

• Size Open: 25" x 14" x 14"
• Size Collapsed: 25" x 15" x 6"
• Stovetop Height with Legs: 27"
• Weight - Firebox : 43 lb
• Weight - Standard Package: 51 lb
• Weight - Deluxe Package: 57 lb
• Stove Pipe: 5 inch to 4 inch Nesting Pipe
• Total Pipe Length: 77".  Height is 83 inches if heat exchanger is used.

• Stack Robber / Heat Exchanger

• Acts as an in line spark arrestor just above the stove.
• Stack robber/heat exchanger is a metal box that has a screen that reduces ashes and sparks going out the top of the stove pipe.
• Metal screen slides out to be easily cleaned. Makes cleaning spark arrestor much easier as pipe top section does not have to be removed to clean spark arrestor.

• Side Shelf. Very useful and recommended if stove is used for cooking.

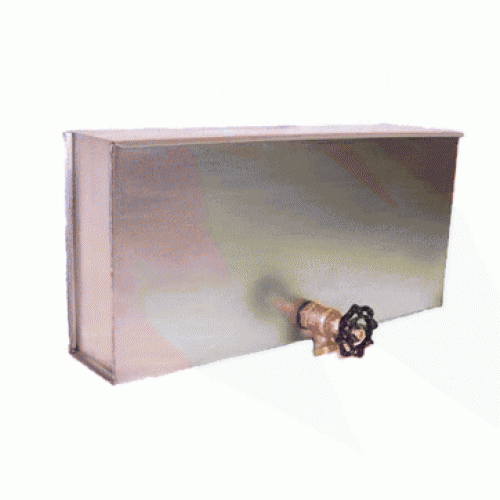

            Water Tank

• • 8 1/8" Tall x 4 3/8" Deep x 16 3/8" Long.
  • 20 gauge Stainless Steel.

  • 1.9 Gallons capacity. Do not allow water tank to be empty when operating the stove. Water tank will possibly warp and rubber washer will melt.

• Adjustable Elbow

• Only necessary if a camper has a stove jack in a sidewall or end wall.  One adjustable elbow allows stove pipe to exit tent at an angle. End of pipe will also be at an angle, not straight up. Two adjustable elbows are required to have stove pipe take a ninety degree turn to go straight up.  Be advised, if only one adjustable elbow is used the top section of stove pipe will be far below tent ridge. Consequently, sparks and embers will be blown into your tent if wind pattern blows into stove jack  side of tent.

• Stove Mat
• 3' x 4' fireproof mat. Place centered under stove with 6 inches behind stove.  There will be 12 inches to the front of stove in the event sparks or embers spark out when stove door is opened.  Stove mat has grommets on one side. Stove mats can also be used as heat protectors for side wall next to stove. Tie stove mat to horizontal wall tent frame pole adjacent to stove.
