STANDARD PACKAGE: Stove, Pipe, Sleeve & Damper, Rain Cap/Spark Arrestor.

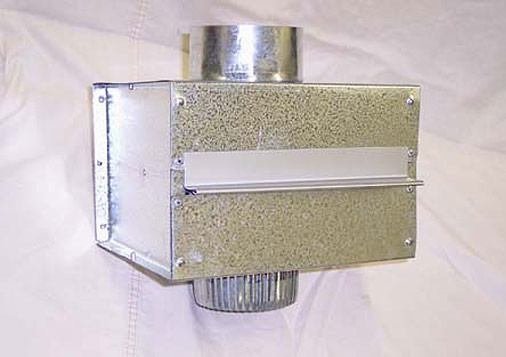

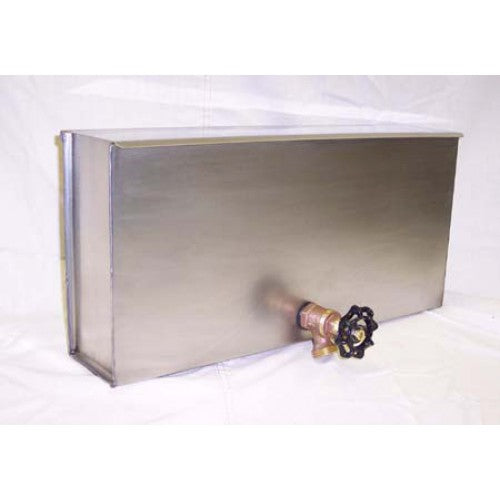

DELUXE PACKAGE: Water tank, Side shelf, Stove, Pipe, Sleeve & Damper, Rain Cap/Spark arrestor.  Water tank holds 2 gallons.

1. Currently lead time on Kni-Co Stoves is 1 - 2 weeks.
2. Kni-Co stoves have a lifetime guarantee on manufacturer defect and workmanship.
3. Sheepherder stove is also commonly known as a Kni-Co stove.
4. Kni-Co Stoves stoves shown above. From left to right: Alaskan, Alaskan Jr., Packer, and Trekker.

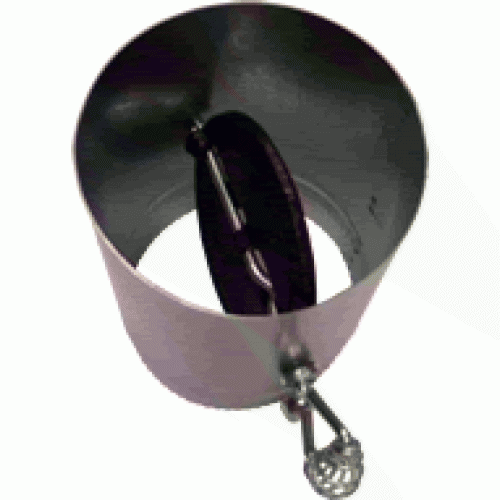

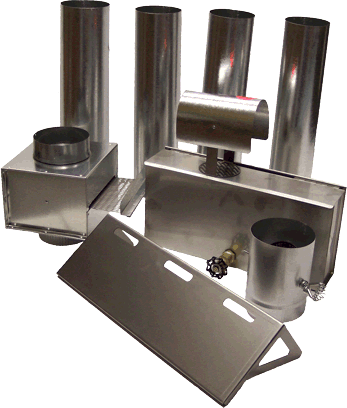

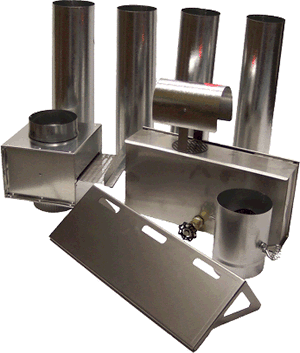

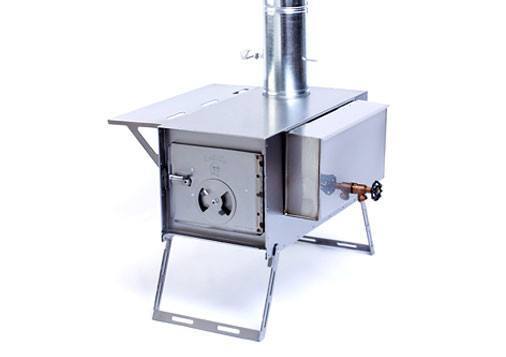

5. Stove Deluxe Package includes stove, stove pipe, damper, spark arrestor, water tank, side shelf.
6. Stove Standard Package includes stove, stove pipe, damper, spark arrestor.

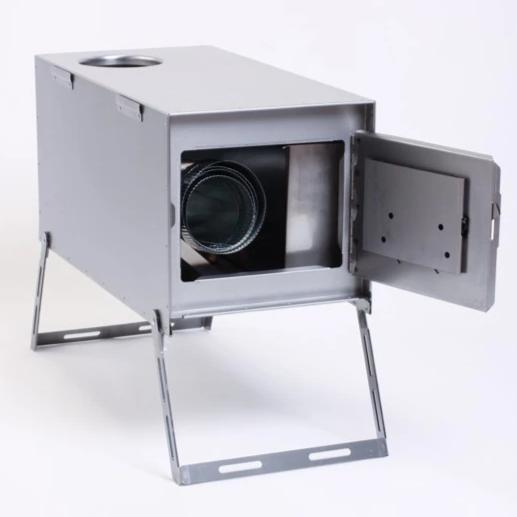

7. Stove pipe, water tank, shelf, damper and sleeve fit into the Alaskan and Alaskan Jr. Stove firebox. However, Kni -Co water tank won't fit inside the Packer and Trekker Stove firebox.

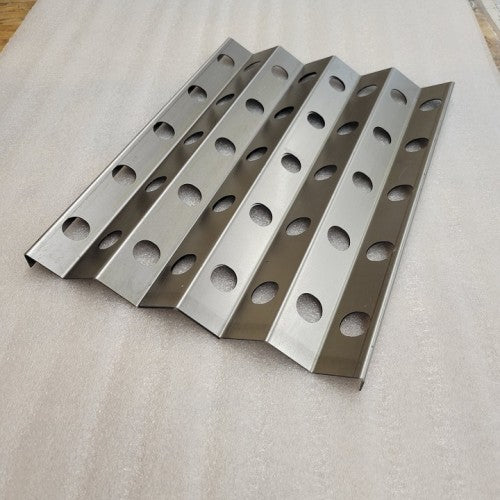

8. False Bottom is designed to lift the fire off the bottom of the stove, eliminating the need for sand or dirt. This helps keep the bottom of the stove from warping and burning out. The False Bottoms are made with two pieces, giving it the ability to easily go through the door of the stove and then adjust to cover the bottom from side to side.
9. All stoves made from 22 gauge cold rolled steel to reduce/resist warpage.

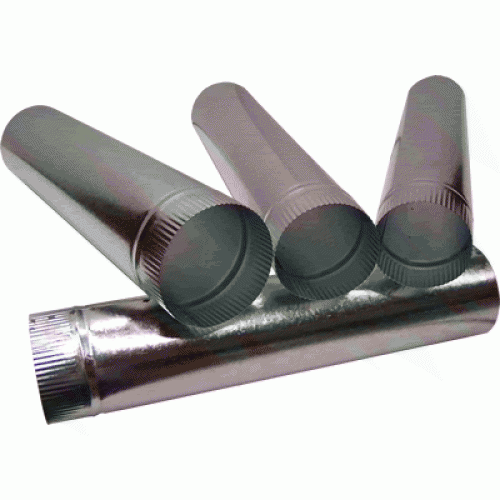

10. Nesting stove pipe, 82" long (Alaskan & Packer - 20" sections) or 77" long (Alaskan Jr. & Trekker - 16" sections), 4 pieces, larger stove pipe piece fits into next smaller stove pipe piece.
11. On Alaskan, Alaskan Jr., and Packer, stove pipe opening is 5" at stove. Depending on your tents wall height, 4 3/4" stove pipe size going through the tent roof and 4" at top of pipe.  On Trekker, stove pipe opening is 4" at stove. Depending on your tents wall height, 3 3/4" stove pipe size going through the tent roof and 3" at top of pipe.
12. Door air intake shield helps prevents sparks popping out the air intake holes.
13. Kni-Co wall tent stoves are lightweight and reliable stoves.

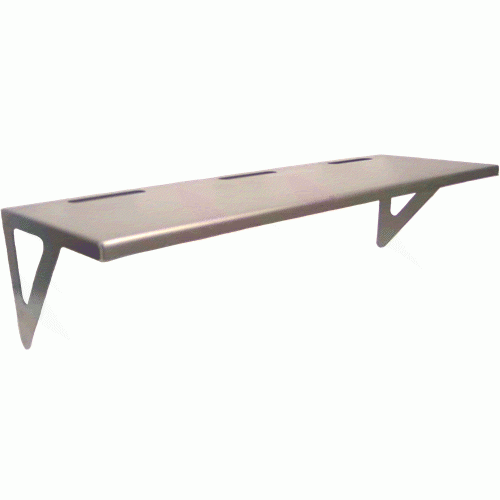

14. Side shelf will fit either side.
15. Fold up sturdy legs.

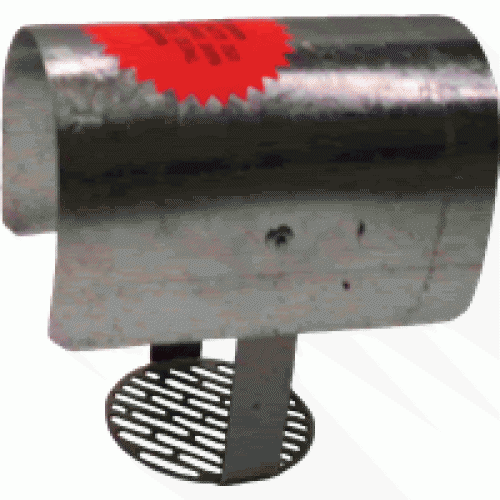

16. Stack Robber/Improved spark arrestor is the best spark arrestor available. The spark arrestor/stack robber normally fits directly after the first pipe section. Spark arrestor screen slides into the stack robber. Removal and cleaning is very easy. A spark arrestor on the top of the smoke stack becomes clogged easily and is difficult to take down and clean. The improved spark arrestor allows you to clean the spark arrestor much easier and more often. Stack Robber is an option and not part of the package.

Prices for accessories and add to this order items only valid when ordered with a stove.

• Alaskan
• Heating Capability: 14x16
• Holds Heat: 5 - 6 Hours
• Dimensions: 24" L x 12" W x 12" H
• Volume: 1.6 Cubic Feet
• Stovetop Height: 20"
• Metal Thickness: 22 Gauge
• Stove Pipe Opening: 5"
• Pipe: 5" - 4" Nesting with 4 - 20" Sections
• Overall Height with Pipe: 102"
• Stove Only Weight: 18 lbs.
• Standard Package Weight: 25 lbs.
• Deluxe Package Weight: 32 lbs.

• Alaskan Jr.
• Heating Capability: 12x14
• Holds Heat: 4 - 5 Hours
• Dimensions: 18" L x 12" W x 12" H
• Volume: 1.2 Cubic Feet
• Stovetop Height: 18.5"
• Metal Thickness: 22 Gauge
• Stove Pipe Opening: 5"
• Pipe: 5" - 4" Nesting with 4 - 16" Sections
• Overall Height with Pipe: 95.5"
• Stove Only Weight: 15 lbs.
• Standard Package Weight: 21 lbs.
• Deluxe Package Weight: 28 lbs.
